D02
NEWCA

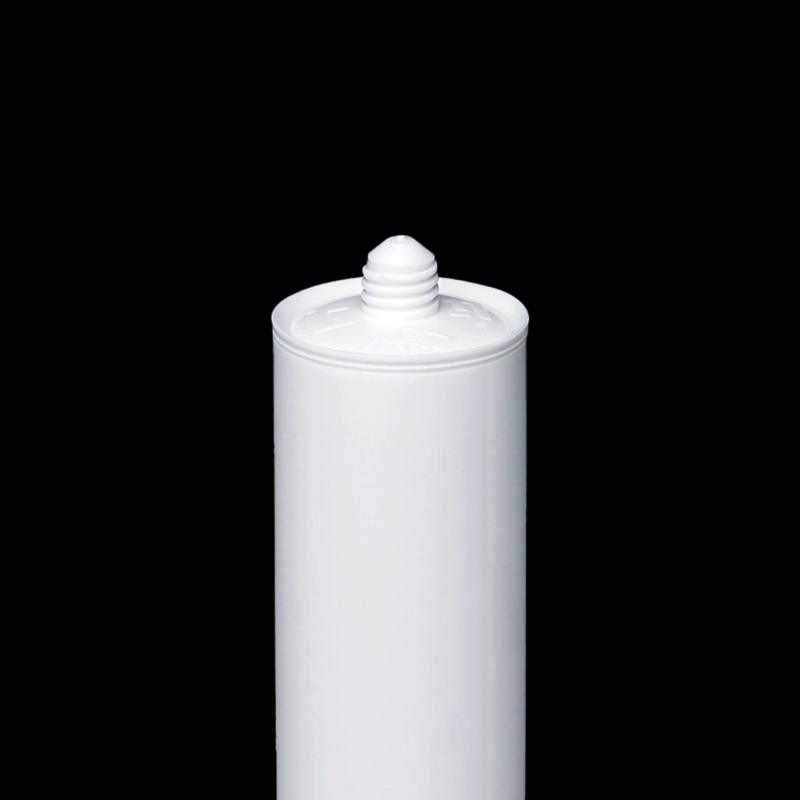

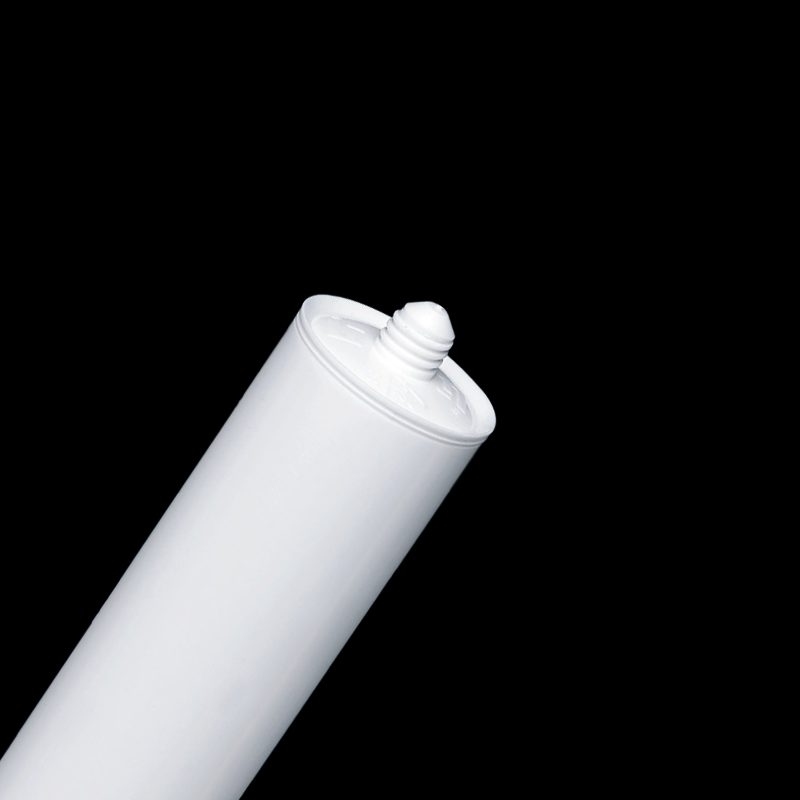

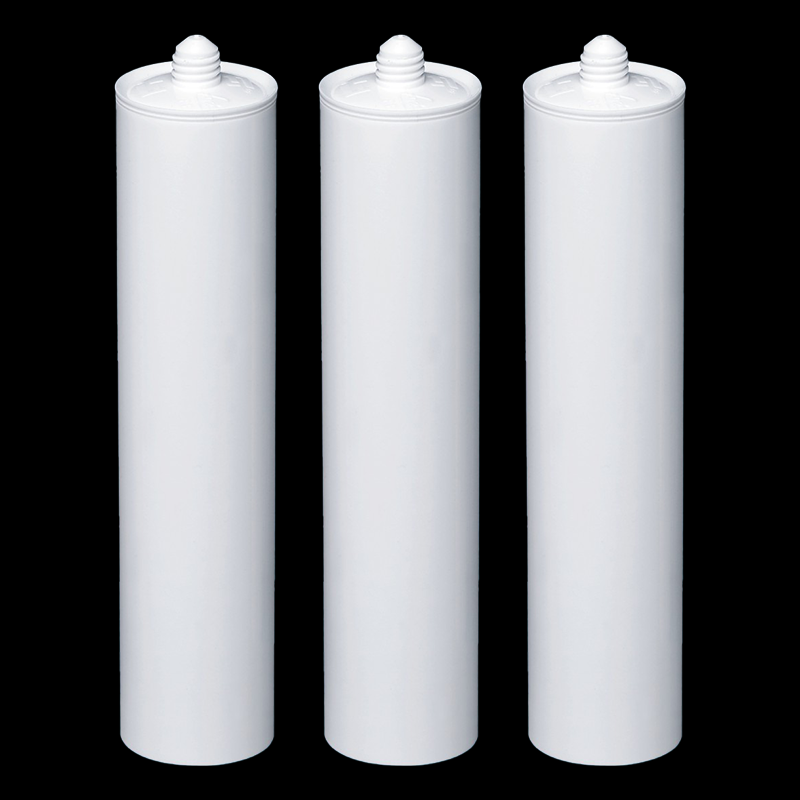

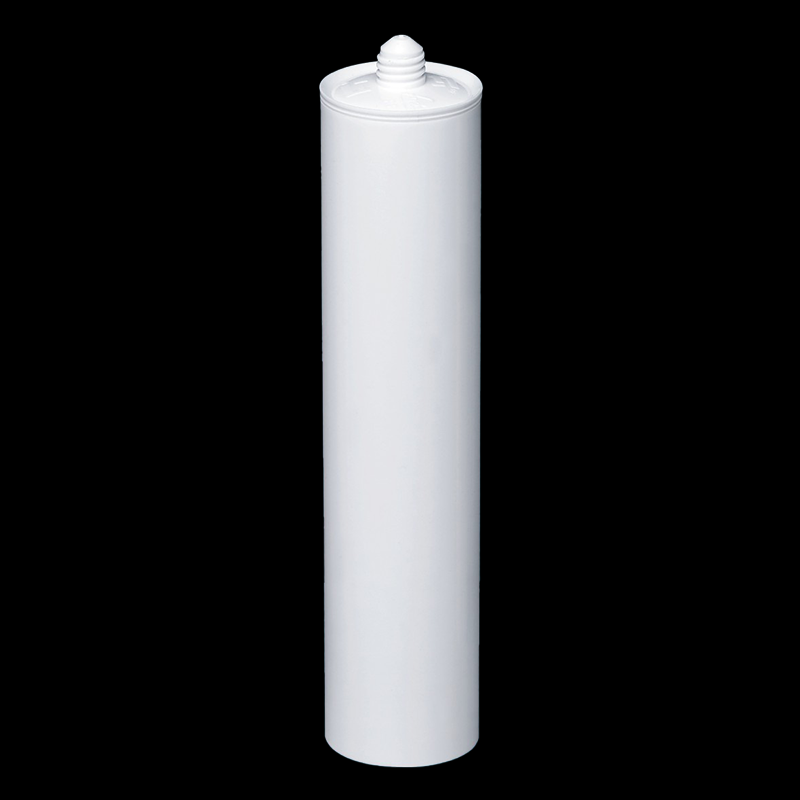

Product Description
Withstands harsh chemicals like silicone sealant, MS sealant, and PU sealants, ensuring long-term product integrity in industrial environments.
Balances sufficient sealant volume with lightweight handling, reducing refill frequency while maintaining user comfort during caulking tasks.
Made from robust HDPE plastic, offering exceptional waterproofing and impact resistance for demanding job sites.
Precision-molded threads and seamless walls prevent adhesive and sealant leakage, saving material and keeping workspaces clean.
Works seamlessly with standard caulking guns and industry-grade sealants, eliminating the need for adapters or modifications.
Designed for demanding work environments, this plastic cartridge ensures consistent, clog-free flow, allowing for precise application and minimizing material waste.
Product Characteristic
Superior Chemical Resistance – Resist corrosion and maintaining structural integrity over time
10.5oz Optimized Capacity – Reduce plastic cartridge change frequency
High-Density HDPE Construction – Offer exceptional waterproofing and impact strength
Leak-Proof Sealing Design – Eliminate material waste and mess
Precision-Engineered Nozzle Fit – Ensure smooth, consistent sealant flow without clogging
Specifications
Model No. | D02 |
Net Weight | 53±2g |
Volume | 300ml |
Material | HDPE |
Height (without threaded nipple) | 216±2mm |
Outside Diameter | 49.2mm |
Inside Diameter | 45.95mm |
Min. Wall Thickness | ≥1.5mm |
Packing | 128pcs/Woven bag or 140pcs/Carton |
Woven Bag Side | 720*400*230mm |
Carton Side | 800*400*240mm |
Sealant Type | Silicone sealant, MS sealant, PU sealant |

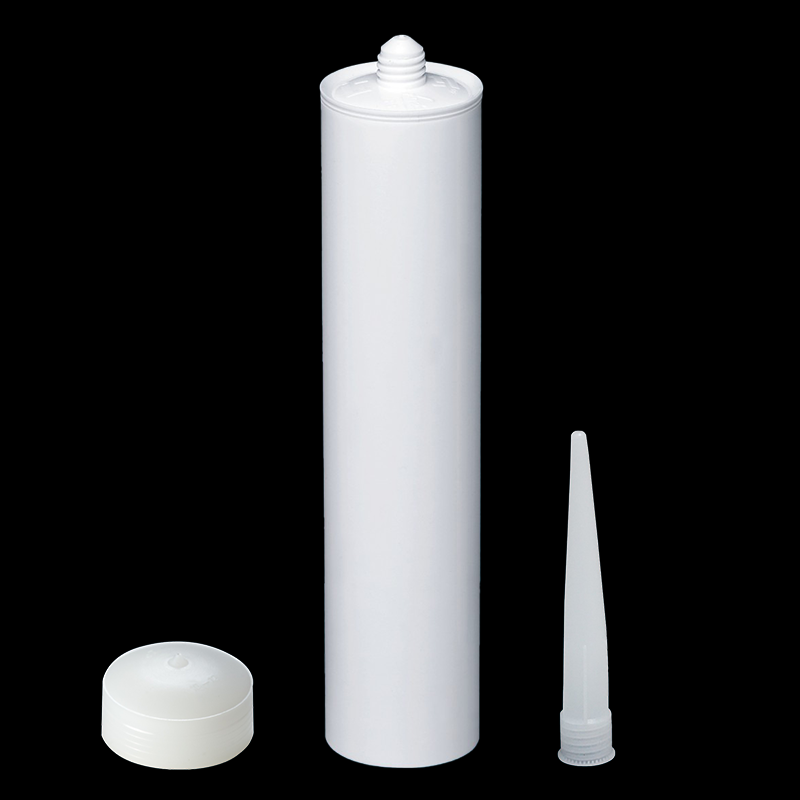

Accessories | |

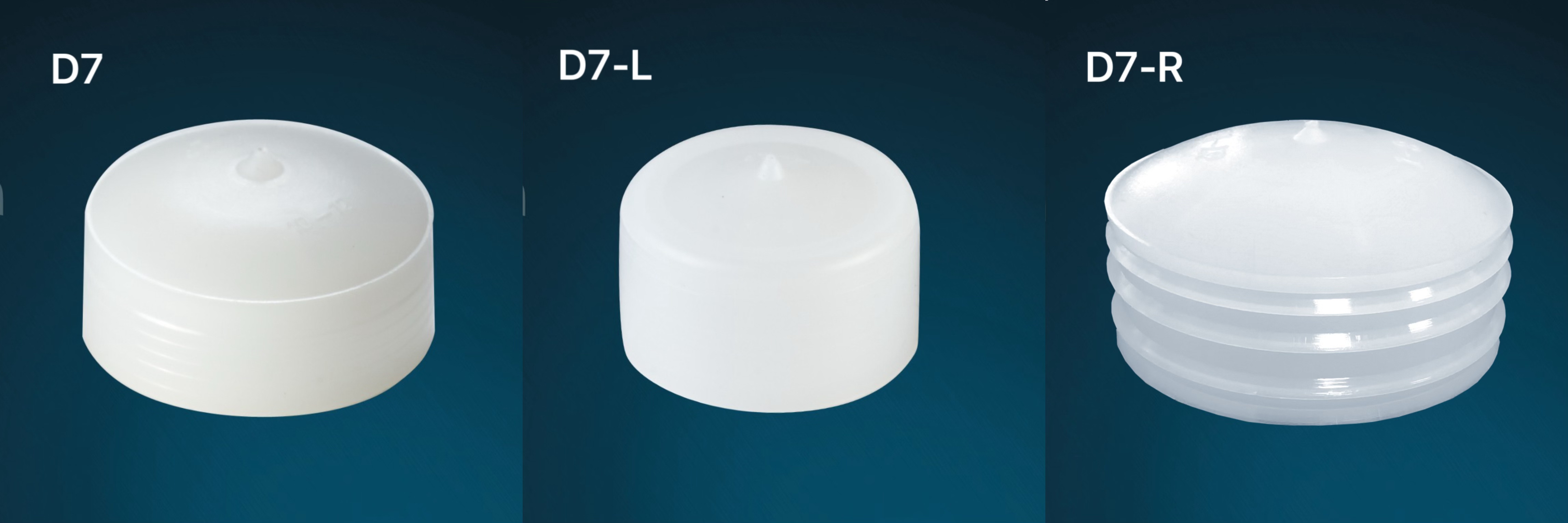

Plunger | d7 |

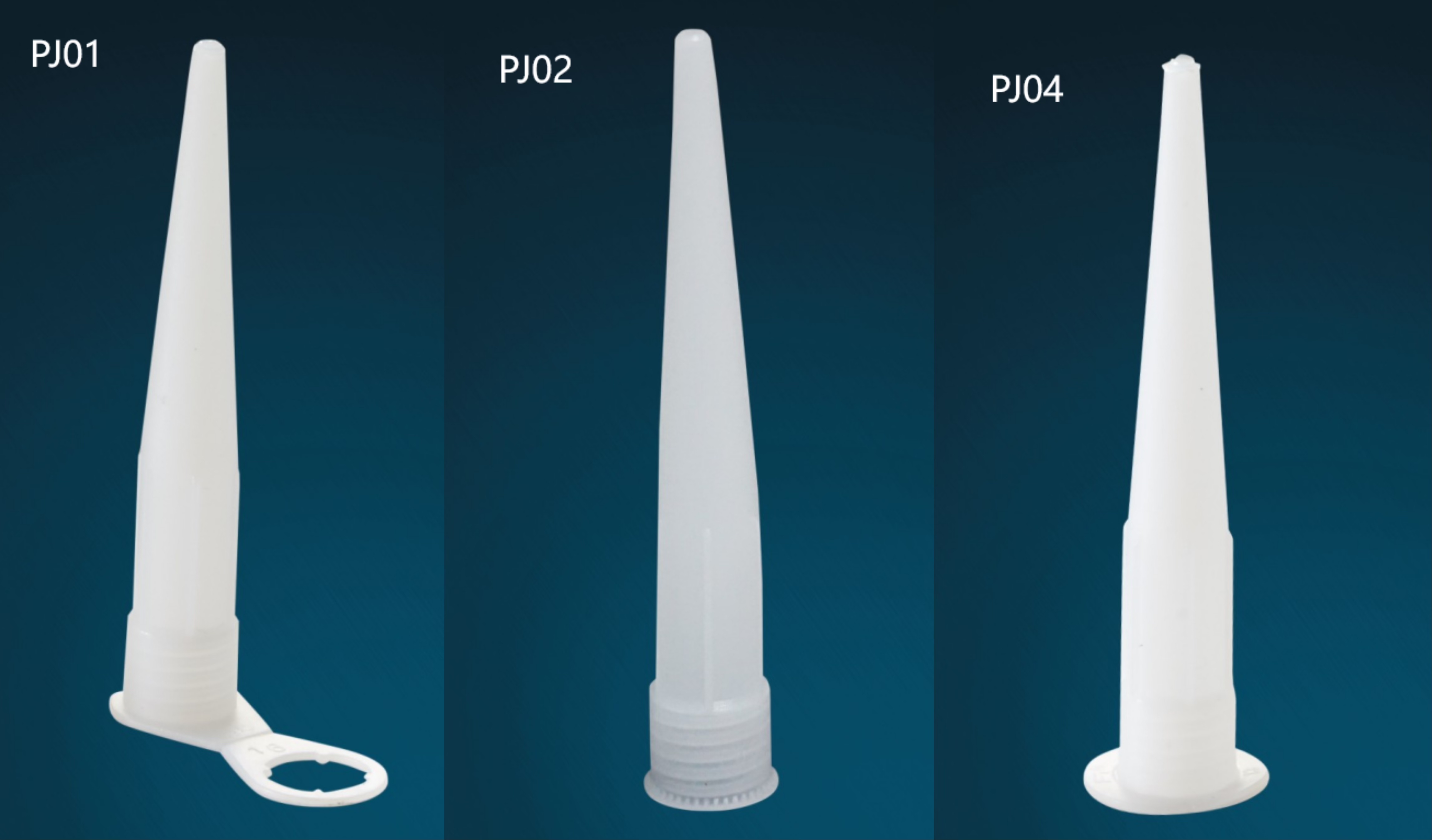

Nozzle | PJ01,PJ02 |
Company Profile

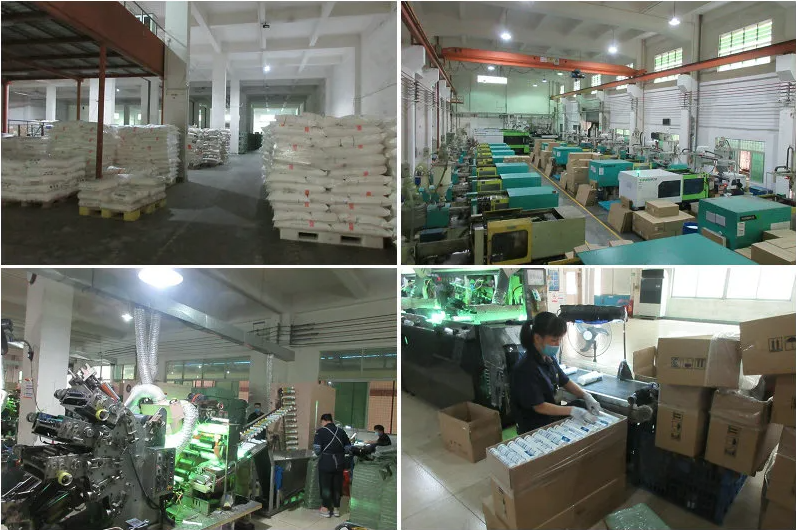

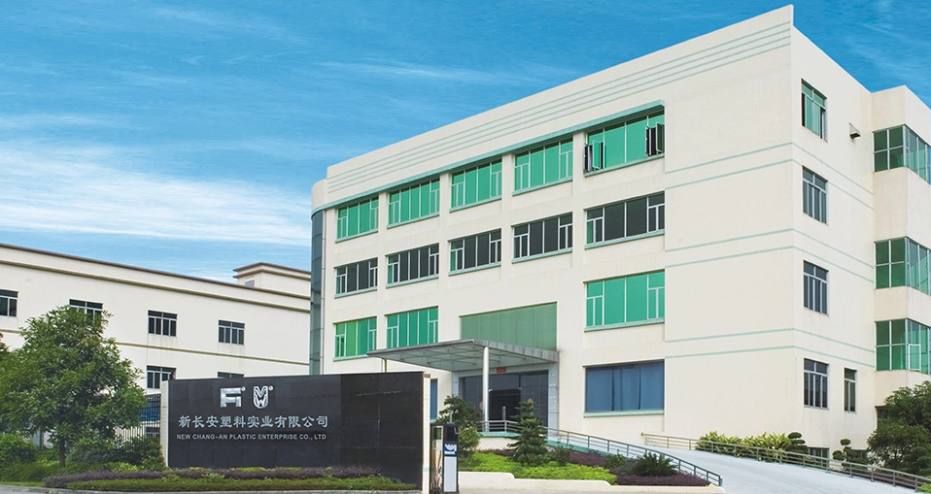

New Chang-an Plastic Enterprise Co., Ltd. (Foshan Jingui Plastic Factory), founded in 1987, is located in Ronggui High Technology Industrial Park, Shunde District, Foshan City with a total floor space of 30,000 square meters and our own standard modern factories. We specialize in manufacturing various packing materials including plastic cartridge, paperboard cartridge, aluminum plastic cartridge, sausage foil (the mentioned products can be printed and filled on automatic machine), two component cartridge, static mixer and nozzle which are catered for silicone sealant, PU sealant, MS sealant and chloroprene rubber adhesive etc. In 2001, our company became the first enterprise in the industry in China to get ISO 9001:2000 Certification.
With the development of over 10 years, we have more than 100 series products. For excellent quality and good service, our products have been supplied to domestic market and exported to over 30 counties and districts such as Australia, Middle East, India, Japan, Pakistan, Southeast Asia, Africa and so on.
Certification
FAQ
1. Can I get a sample before placing a bulk order?
Yes, free samples are available for quality testing. Samples can be arranged within 3 business days.
2. What is the MOQ for this HDPE plastic cartridge?
The standard MOQ is 5,000 pieces. Lower quantities (e.g., 1,000–3,000) may be accepted for trial orders, subject to stock availability. Please reach out to us for detailed MOQ information tailored to your needs.
3. Is this plastic cartridge compatible with standard caulking guns?
Yes, it is designed with standard dimensions to fit industrial caulking guns used for silicone, MS, and PU sealant and adhesive.
4. Do you offer custom printing or labeling on the plastic cartridge?
Yes, custom color, logo printing, and label design are available for bulk orders. Please contact our sales team for artwork requirements.
5. What is the typical lead time for mass production?
Lead time is around 7-15 days after deposit confirmation, depending on order quantity and customization needs.
6. Is the plastic cartridge waterproof and leak-proof?
Yes, the precision-molded design and tight-fit plunger ensure a waterproof seal and zero leakage during storage or high-pressure dispensing.
