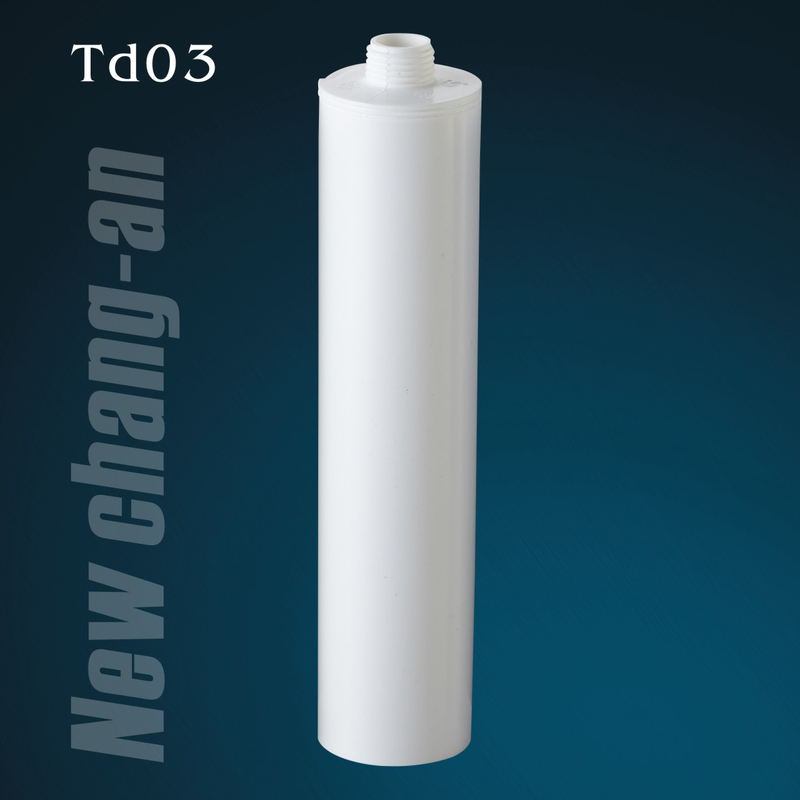

Td03
NEWCA
This plastic cartridge is made from high density polyethylene (HDPE)
The cartridge is suitable for silicone sealant,MS sealant,PU sealant and many other sealant
Ensure excellent application behavior and optimum emptying when used with corresponding plunger
The cartridge is suitable for automatic filling, prefabrication with the corresponding nozzle and plunger systems and automatic end packaging
Offset printing and silk screen printing are both available
Maximum contents is 300ml
It's not out of shape easily
Excellent barrier property
Splendid corrosion and chemical resistance
Excellent printing performance
Good sealing performance
The HDPE polymer used provides strong water vapor barrier for sealants and adhesives
| Model No. | Td03 |
| Net Weight | 53±2g |
| Volume | 300ml |
| Material | HDPE |
| Density | 0.960g/cm3 |
| Height (without threaded nipple) | 216±1mm |
| Inside Diameter | Φ45.9mm |
| Outside Diameter | Φ49mm |
| Min. Wall Thickness | ≥1.5mm |
| Colour | white |
| Packing | 128pcs/bag or 140pcs/carton |
| Woven Bag Size | 720*400*230mm |
| Carton Size | 800*400*240mm |
| Accessories | |
| Plunger | D7,D7-P |
| Plunger Weight | 7g |
| Nozzle | TJ01,TJ02,TJ03 |
1. How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2.What's the MOQ and payment support ?
MOQ is 5000pcs .
T/T, L/C is accepted .
3.Can your factory print or emboss my logo on the goods?
Yes, we can print or emboss the logo on the goods or their packing box, for patent protection purpose, a letter of attorney (letter of authorization) shall be provided for the logo.
We usually produce goods based on customer's samples or based on customers' picture , logo , sizes etc detail information design for customers.
4.Can your factory print or emboss my logo on the goods?
Yes, we can print or emboss the logo on the goods or their packing box, for patent protection purpose, a letter of attorney (letter of authorization) shall be provided for the logo.
We usually produce goods based on customer's samples or based on customers' picture , logo , sizes etc detail information design for customers.
5. How does your factory do regarding quality control?
Quality is priority !
Every worker keeps the QC from the very beginning to the very end:
1) All raw material we used are environmental-friendly;
2) Skillful workers care every detail in handing the stamping, printing, stitching,packing process;
3) Quality control department specially responsible for quality checking in each process.
If you have any other questions, please contact us.
