Z03
NEWCA

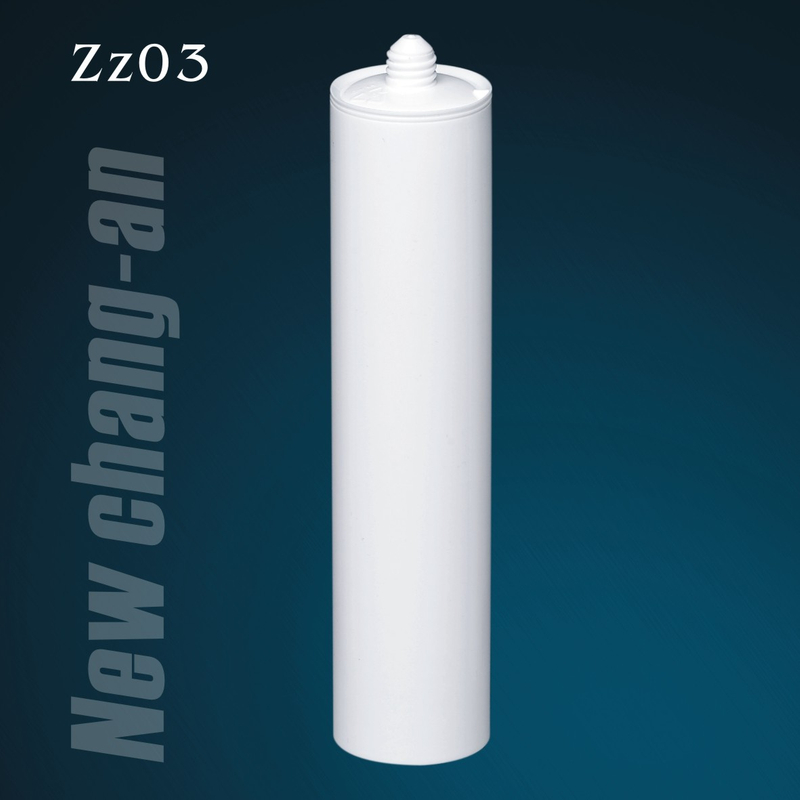

The plastic cartridge is made from high-quality High-Density Polyethylene (HDPE), ensuring toughness and resistance
The plastic cartridge is suitable for silicone sealant,MS sealant,PU sealant and many types of sealant
The plastic cartridge is suitable for automatic filling, prefabrication with the corresponding nozzle and plunger systems and automatic end packaging
Ensure excellent application behavior and optimum emptying when used with corresponding plunge
Our printing technology ensures that the plastic cartridges are adorned with the finest printed label quality
Maximum contents is 250ml
Durable Material
Splendid corrosion and chemical resistance
Excellent printing performance
High barrier property
Leak-Proof Design
Suitable for automatic and manual cartridge filling lines
Suitable for most of the sealant
| Model No. | Z03 |
| Net Weight | 53±2g |
| Volume | 250ml |
| Material | HDPE |
| Height (without threaded nipple) | 204.5±1mm |
| Density | 0.960g/cm3 |
| Inside Diameter | Φ44mm |
| Min. Wall Thickness | ≥1.5mm |
| Colour | white |
| Packing | 128pcs/bag or 140pcs/carton |
| Woven Bag Size | 720*400*230mm |
| Carton Size | 800*400*240mm |
| Sealant type | Silicone sealant,MU sealant,PU sealant |
| Accessories | |
| Plunger | Z7 |

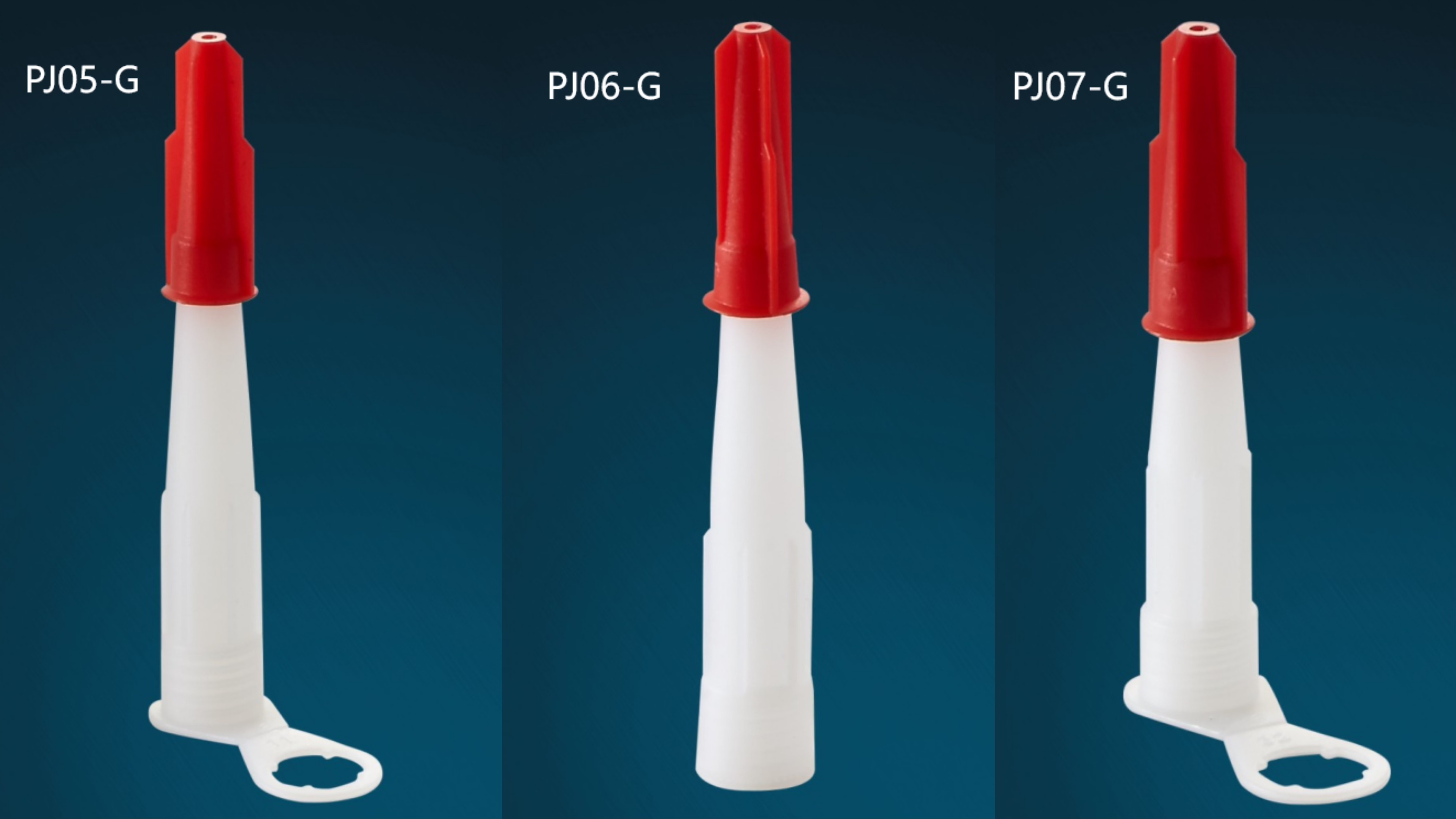

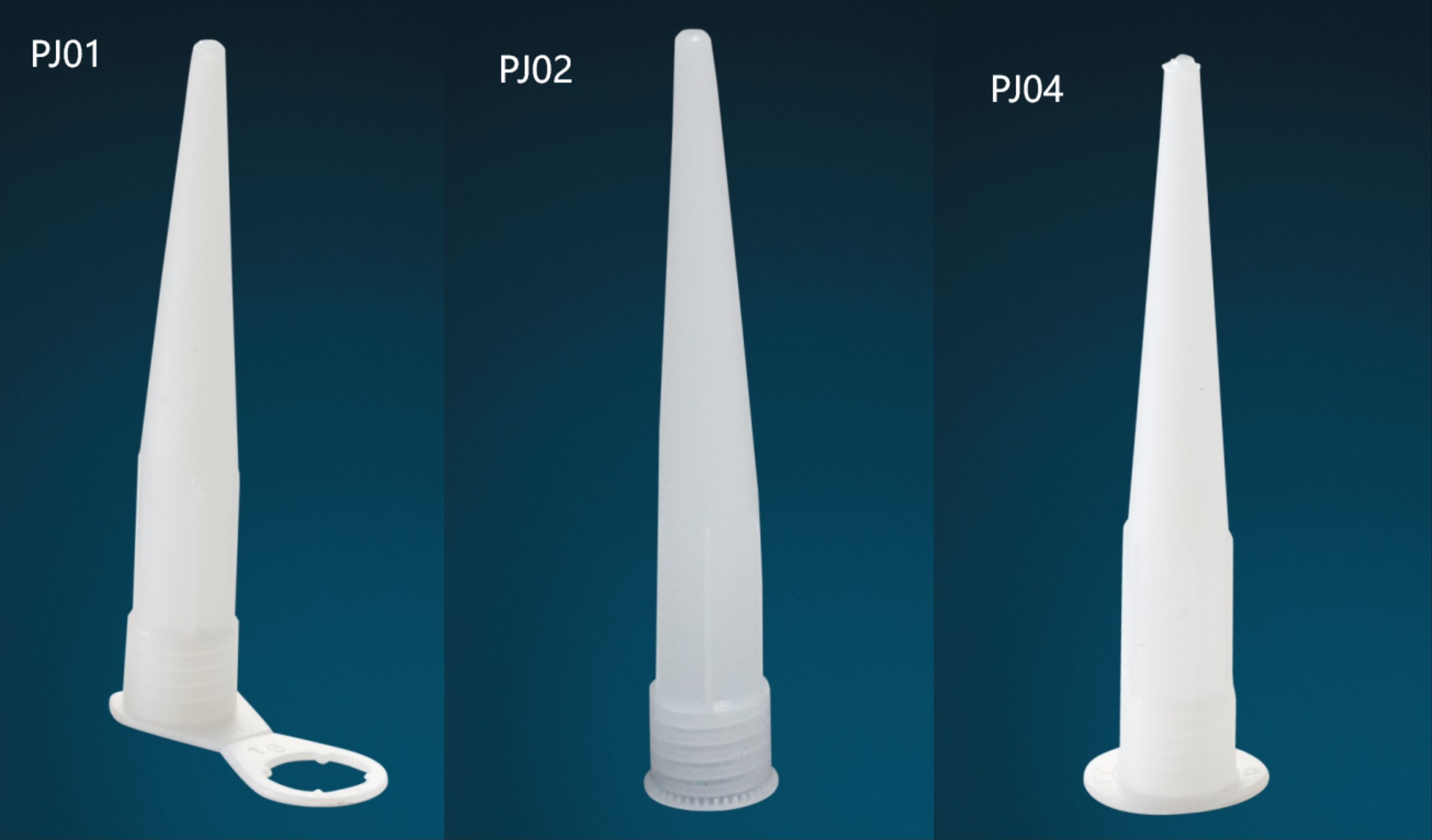

| Nozzle | PJ01,PJ02,PJ04,PJ05-G,PJ06-G,PJ07-G |

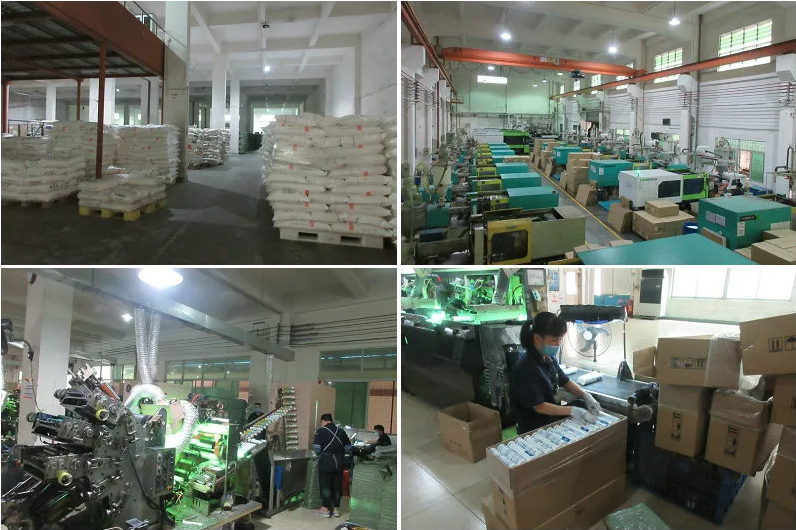

As the largest-scale manufacturer in plastic packing industry in China, besides injection factory with more than 150 injection machines,we have our own plastic injection factory, mould factory and printing factory, paperboard cartridge factory, aluminium collapsible tube factory, and sausage foil factory with most advanced equipment in the industry. With the development of over 10 years, we have more than 100 series products. For excellent quality and good service, our products have been supplied to domestic market and exported to over 30 counties and districts such as Australia, Middle East, India, Japan, Pakistan, Southeast Asia, Africa and so on.
1. How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2.What's the MOQ and payment support ?
MOQ is 5000pcs .
T/T, L/C is accepted .
3.Can your factory print or emboss my logo on the goods?
Yes, we can print or emboss the logo on the goods or their packing box, for patent protection purpose, a letter of attorney (letter of authorization) shall be provided for the logo.
4. How does your factory do regarding quality control?
Quality is priority !
Every worker keeps the QC from the very beginning to the very end:
1) All raw material we used are environmental-friendly;
2) Skillful workers care every detail in handing the stamping, printing, stitching,packing process;
3) Quality control department specially responsible for quality checking in each process.
5.How should I store unused bottles?
Store in a cool, dry place away from direct sunlight to maintain integrity.
If you have any other questions, please contact us.
