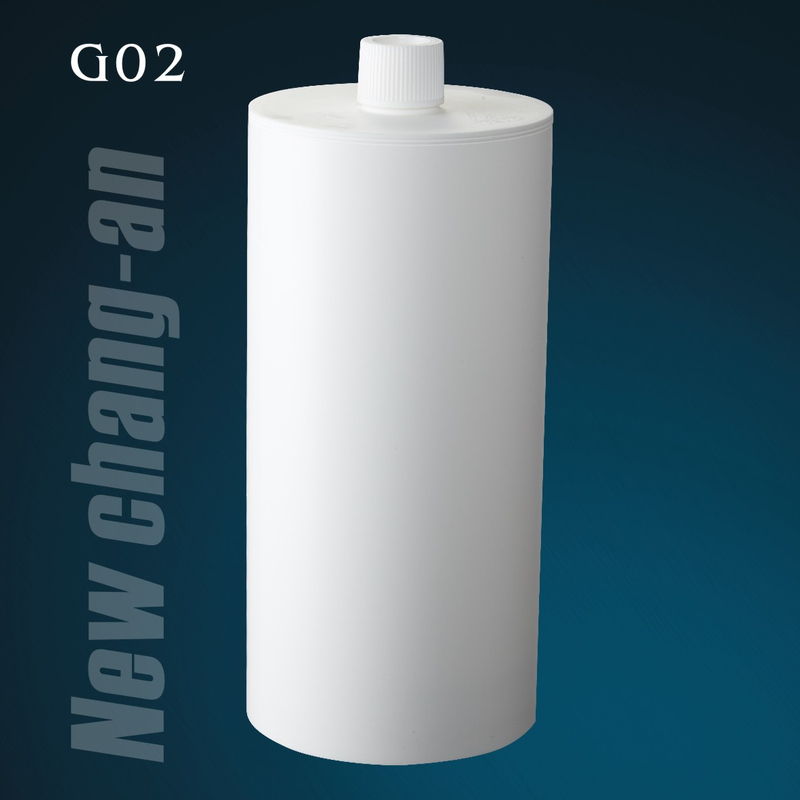

Engineered for large-scale industrial silicone handling, our 2600ml HDPE Plastic Cartridge combines heavy-duty durability with chemical resistance to meet the demands of high-volume manufacturing and construction. Its wide-mouth opening simplifies filling with thick, high-viscosity materials, while the stackable design enhances storage efficiency in industrial facilities. Constructed from food-grade HDPE, this cartridge maintains material integrity across extreme temperatures, making it suitable for both indoor and outdoor applications.
Parameter | Value |
Material | High-Density Polyethylene (HDPE) |
Capacity | 2600 ml |
Dimensions | Height: 450 mm, Diameter: 90 mm |
Wall Thickness | 2.0 mm ± 0.2 mm |
Temperature Range | -20°C to 100°C |
Certifications | FDA 21 CFR 177.1520, ISO 9001, EU REACH |
Pressure-Resistant Construction: Reinforced sidewalls withstand 20 bar static pressure and 30 bar dynamic pressure during pneumatic dispensing, preventing bulging or rupture.
Wide-Mouth Filling Design: 90mm opening allows easy manual or automated filling with high-viscosity silicones (up to 100,000 cP) and paste-like compounds without air entrapment.
Long-Term Storage Stability: UV-stabilized HDPE maintains material consistency for 5+ years in outdoor storage, while the airtight seal prevents moisture absorption.
Cleanroom Compatibility: Anti-static coating reduces dust adhesion, meeting ISO 8 cleanroom standards for electronics and pharmaceutical applications.
Universal Tool Fit: Compatible with standard 1/4" NPT nozzles and industrial cartridge guns, including battery-powered and pneumatic models from major manufacturers.
Automotive Production: Bulk dispensing of windshield adhesives, gasketing silicones, and underbody sealants in assembly lines.
Aerospace Manufacturing: Storing high-temperature resistant silicones for aircraft cabin seals and engine compartment gaskets.
Electronics Assembly: Containing thermal interface materials, potting compounds, and conformal coatings for circuit board protection.
Renewable Energy: Packaging sealants for solar panel installations, wind turbine blade assembly, and battery enclosure waterproofing.
Q: Is this cartridge suitable for food-contact silicone applications?
A: Yes, it meets FDA 21 CFR 177.1520 standards for indirect food contact, making it safe for packaging food-grade silicones used in kitchen equipment.
Q: What is the maximum continuous dispensing time before overheating?
A: When used with proper pneumatic regulators (30 psi max), it supports 4+ hours of continuous dispensing without performance degradation.
Q: Can custom graduations be added for volume monitoring?
A: Yes, we offer custom printed volume markers (in ml or oz) on the cartridge body for precise material usage tracking.
