The black HDPE plastic cartridge combines an elegant appearance with high durability, making it ideal for both professional and DIY applications
Made from high-density polyethylene (HDPE), this plastic cartridge is impact-resistant, chemical-proof, and protects silicone sealant from moisture and UV degradation
Designed for convenience, this 300ml size ensures easy handling and precise dispensing, minimizing waste while being suitable for small to medium projects
The secure closure prevents premature drying and maintains sealant freshness, ensuring optimal performance and extended usabil
The plastic cartridge is suitable for automatic filling, prefabrication with the corresponding nozzle and plunger systems and automatic end packaging
| Quantity: | |
|---|---|
Td03
NEWCA

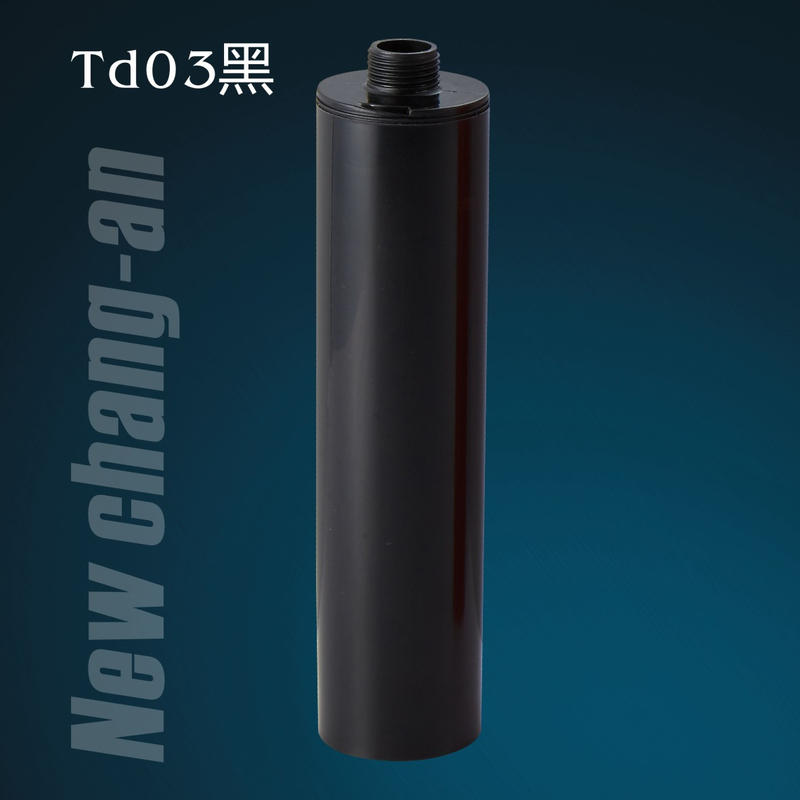

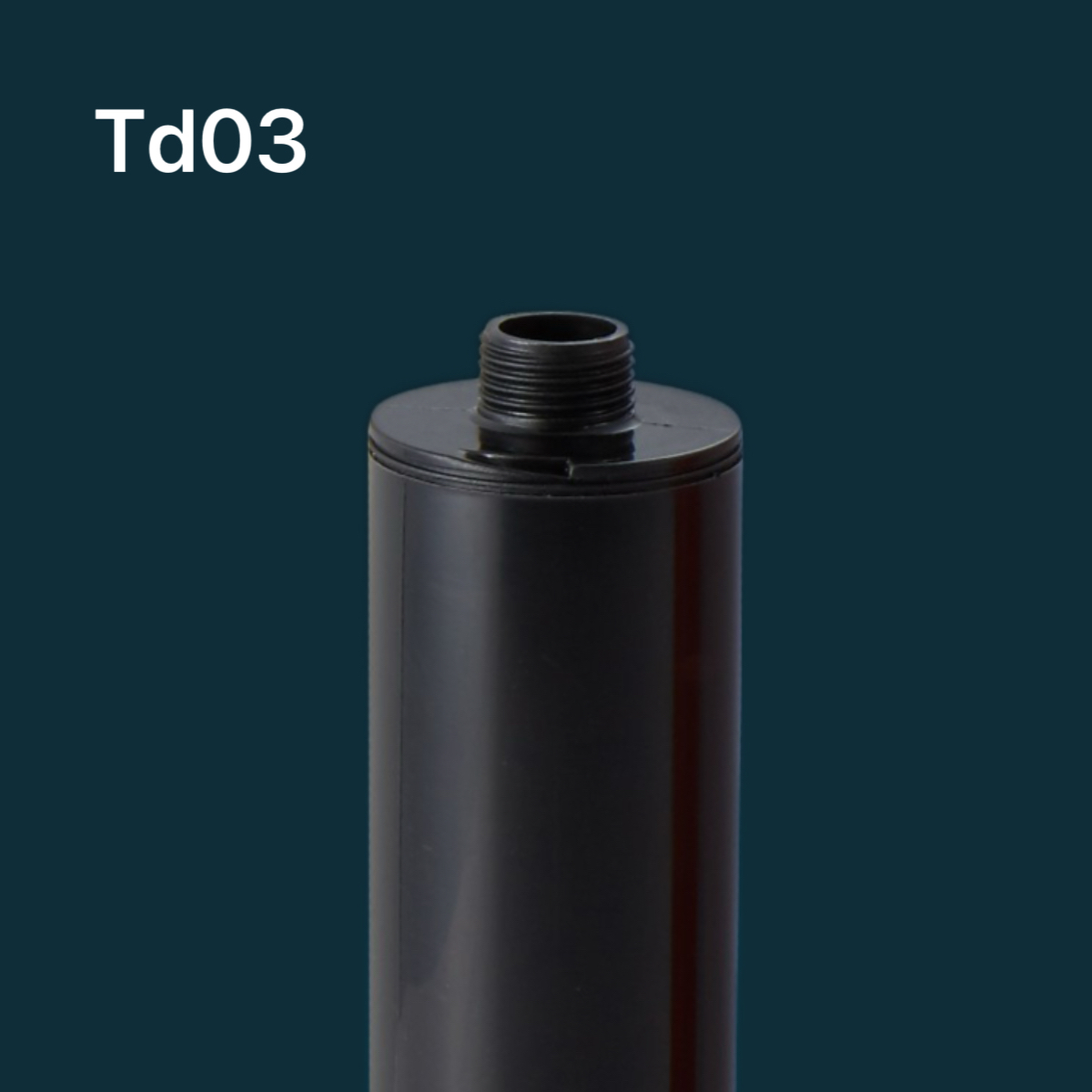

Engineered specifically for outdoor and high-UV environments, our 300ml Black HDPE Plastic Cartridge provides superior protection for silicone sealants, RTV adhesives, and thermal gap fillers prone to UV degradation. Constructed from high-density polyethylene (HDPE) infused with carbon black pigment, this cartridge blocks 99% of harmful UV rays to prevent material curing, discoloration, or performance loss during storage. The airtight plunger system and threaded nozzle interface ensure leak-free dispensing, even in extreme weather conditions—making it a trusted choice for construction, automotive, and marine applications where silicone integrity is critical.
Parameter | Value |
Material | High-Density Polyethylene (HDPE) |
Capacity | 300 ml |
Dimensions | Height: 230 mm, Diameter: 48 mm |
Wall Thickness | 1.5 mm ± 0.1 mm |
UV Protection | 99% UV blockage |
Certifications | FDA 21 CFR 177.1520 |
UV-Stabilized Construction: Carbon black pigment integration creates a barrier against UVA/UVB rays, preventing silicone material embrittlement and maintaining flexibility after 1,000+ hours of outdoor exposure.
Extended Chemical Resistance: Compatible with all silicone formulations, acrylics, and solvent-based compounds, withstanding pH levels from 2–12 without material degradation.
Efficient Material Evacuation: Precision-molded internal ribbing reduces friction between plunger and cartridge walls, enabling 98% material usage to minimize waste and maximize cost efficiency.
Secure Storage Features: Tamper-evident breakable neck seal confirms product freshness, while an optional re-sealable nozzle cap allows partial use with prolonged storage between applications.

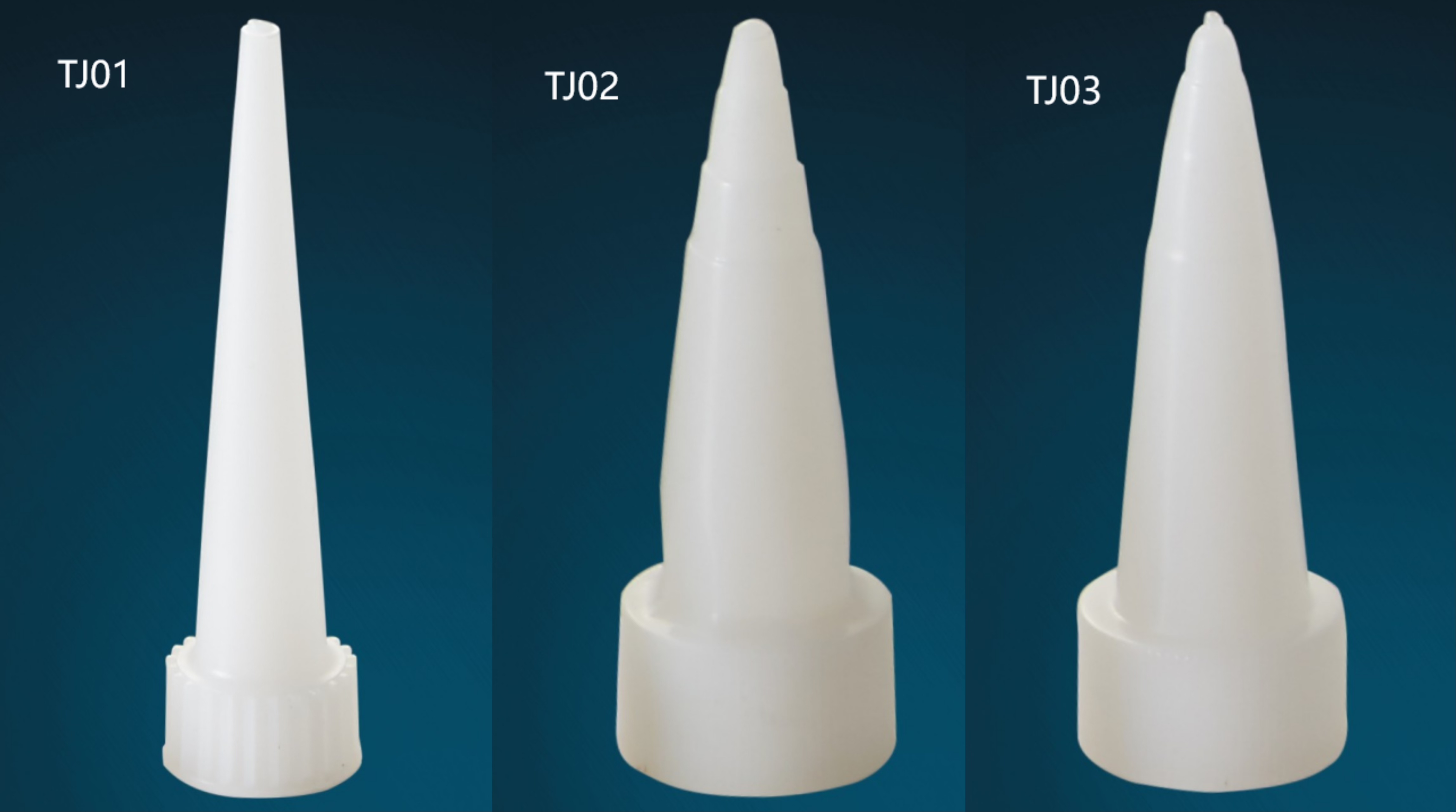

Customizable Dispensing Options: Available with 3mm, 5mm, or 8mm precision orifice nozzles to control bead size, with blunt-tip variants for specialty applications like electronics potting.
Exterior Construction: Sealing window frames, roofing joints, and expansion gaps in high-sunlight regions with UV-cured silicone sealants.
Outdoor Electronics: Packaging thermal interface materials (TIMs) and conformal coatings for solar panels, outdoor lighting, and communication equipment.
Automotive Underhood: Storing high-temperature engine sealants and gasket makers that require UV protection during shelf storage.
Marine Maintenance: Waterproofing boat decks, hull seams, and dock fittings with saltwater-resistant silicone formulations exposed to intense sunlight.
Q: Is this cartridge suitable for food-grade silicone applications?
A: Yes, its HDPE construction meets FDA 21 CFR 177.1520 standards for indirect food contact, making it safe for packaging silicones used in food processing equipment and kitchen fixtures.
Q: What is the shelf life of filled silicone cartridges?
A: When stored in cool, dark conditions (below 25°C), filled cartridges maintain silicone performance for 24 months—twice the shelf life of clear cartridges in UV-exposed environments.
Q: Can the nozzle be replaced for different application needs?
A: Yes, the standard 1/4" NPT threaded nozzle is easily replaceable with specialty tips, including flexible extensions for hard-to-reach areas and multi-orifice designs for wide-seam sealing.
