Td01
NEWCA

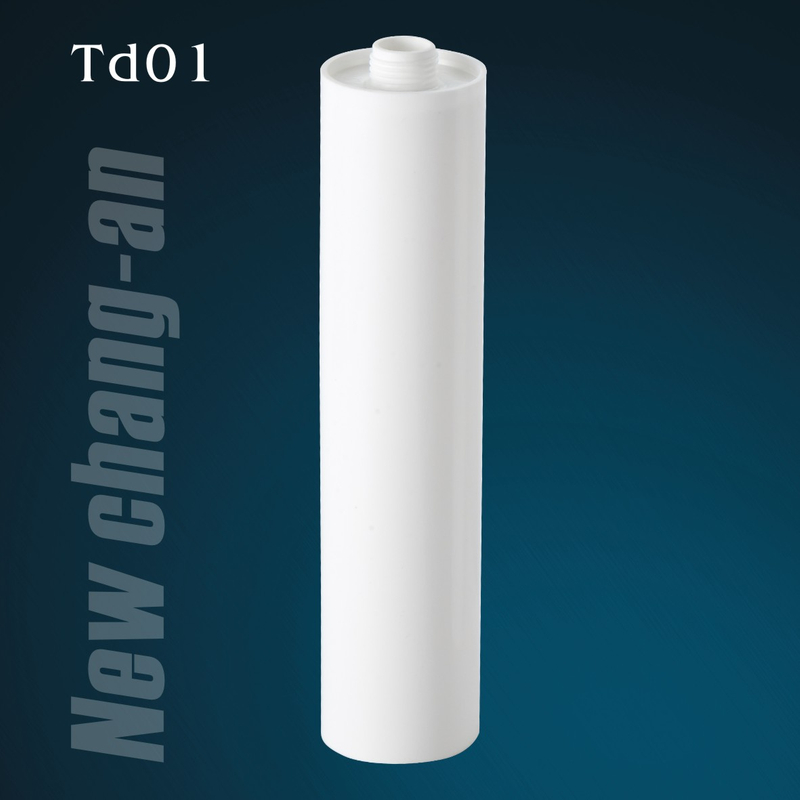

This plastic cartridge is made from high quality HDPE
The plastic cartridge is suitable for silicone sealant,MS sealant,PU sealant and many types of sealant
Ensure excellent application behavior and optimum emptying when used with corresponding plunger
The plastic cartridge is suitable for automatic and manual cartridge filling lines
Offset printing and silk screen printing are both available
Our printing technology ensures that the plastic cartridges are adorned with the finest printed label quality
Maximum contents is 300ml
Highly deformation resistance - It's not out of shape easily
Fully compatible and easy emptying with our plunger
Chemical Resistance – Withstands harsh adhesive components without degradation or leakage
Excellent printing performance - You can customized your printing label
Leak-Proof Design - Precision-molded threads prevent spills
Excellent barrier property
Suitable for most of the sealant
| Model No. | Td01 |
| Net Weight | 53±2g |
| Volume | 300ml |
| Material | HDPE |
| Height (without threaded nipple) | 216±1mm |
| Density | 0.960g/cm3 |
| Inside Diameter | Φ46mm |
| Outside Diameter | Φ49mm |
| Min. Wall Thickness | ≥1.5mm |
| Colour | White |
| Packing | 128pcs/bag or 140pcs/carton |
| Woven Bag Size | 720*400*230mm |
| Carton Size | 800*400*240mm |
| Sealant type | Silicone sealant,MU sealant,PU sealant |
| Accessories | |
| Plunger | D7,D7-P |

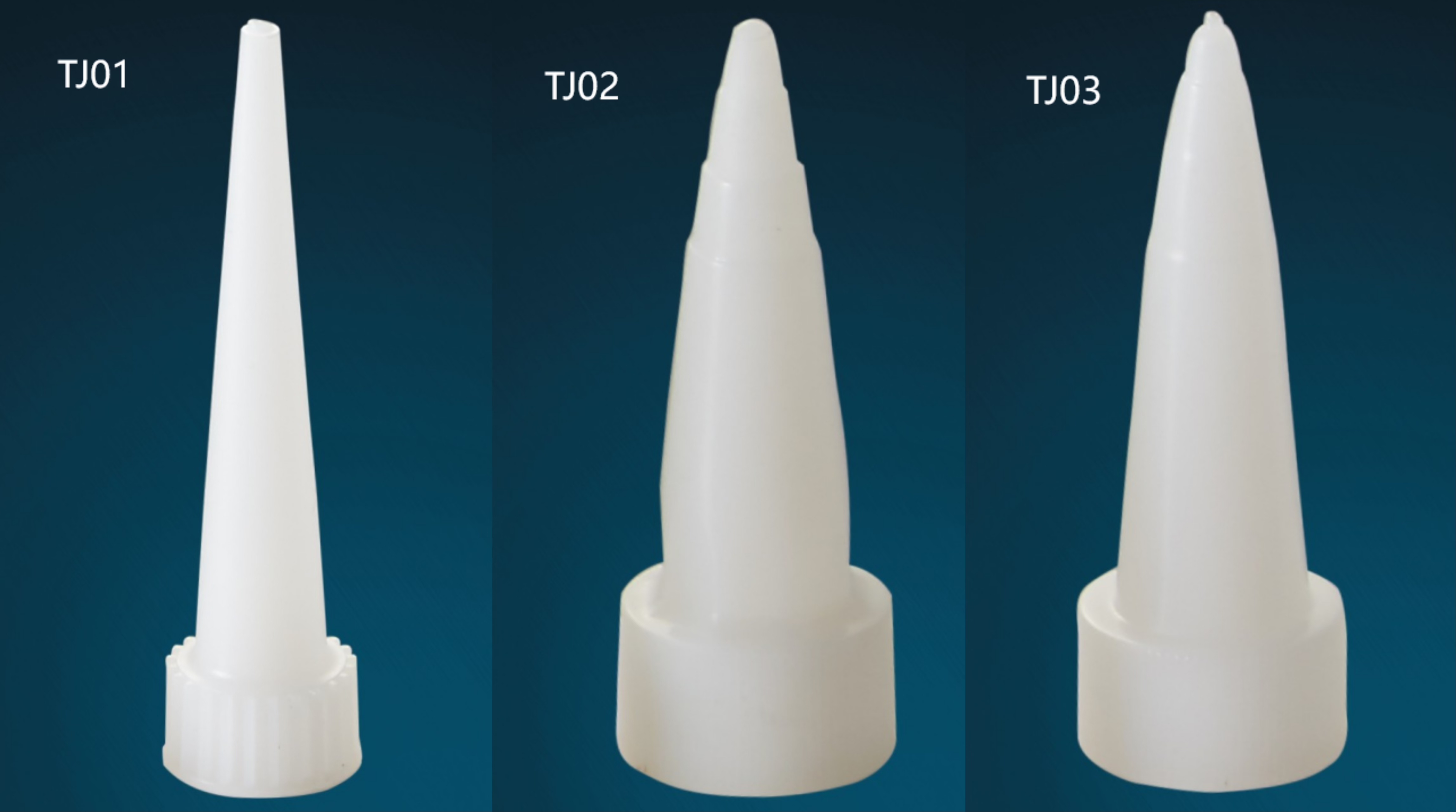

| Nozzle | TJ01,TJ02,TJ03 |
We specialized in manufacturing various packing materials including plastic cartridge,paperboard cartridge,aluminium cartridge,aluminium collapsible tube,sausage foil(the mentioned products can be printed and filled on motomatic machine),two component cartridge,static mixer and nozzle which are catered for solicone sealant,PU sealant,MS sealant and chloroprene rubber adhesive etc.
1. How can I get some samples?
We are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2.What's the MOQ ?
MOQ is 5000pcs .
3. How does your factory do regarding quality control?
Every worker keeps the QC from the very beginning to the very end:
1) All raw material we used are environmental-friendly;
2) Skillful workers care every detail in handing the stamping, printing, stitching,packing process;
3) Quality control department specially responsible for quality checking in each process.
If you have any questions,please contact us.
