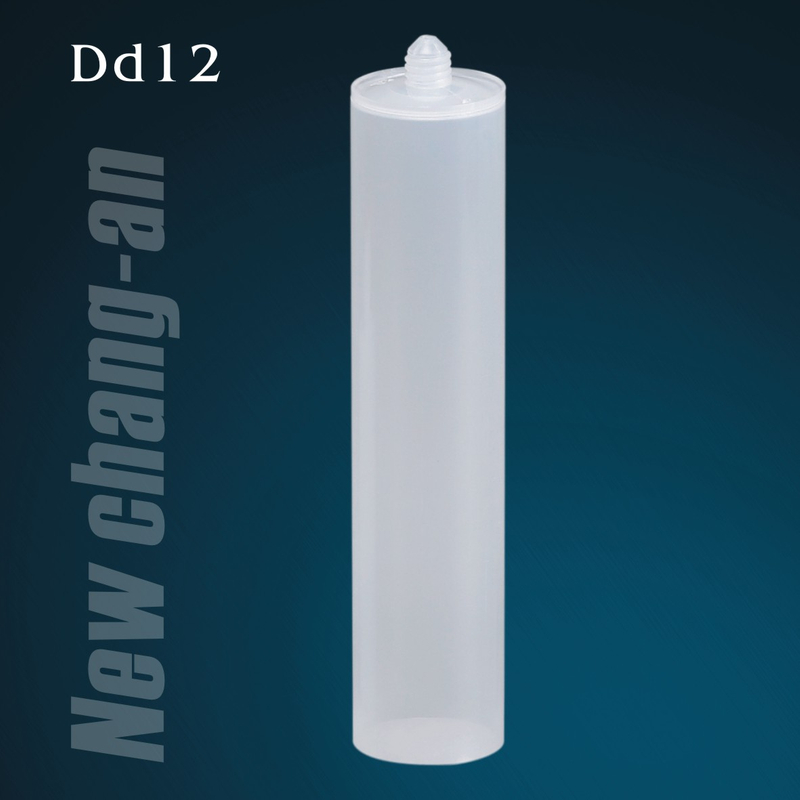

D12
NEWCA
This plastic cartridge is made from high quality HDPE
The plastic cartridge is suitable for silicone sealant,MS sealant,PU sealant and many types of sealant
The plastic cartrudge is designed with a fine or adjustable nozzle for controlled dispensing and minimal waste
The transparent plastic cartridge enables a clearer view of the state of the sealant
The plastic cartridge is suitable for automatic and manual cartridge filling lines
Offset printing and silk screen printing are both available
Maximum contents is 300ml
Highly deformation resistance - It's not out of shape easily
High Transparency - The transparent plastic cartridge allows users to easily see the glue’s color and consistency for quick identification
Chemical Resistance – Withstands harsh adhesive components without degradation or leakage
Excellent printing performance - You can customized your printing label
High barrier property
Suitable for most of the sealant
| Model No. | D12 |
| Net Weight | 48±2g |
| Volume | 300ml |
| Material | HDPE |
| Height (without threaded nipple) | 216±1mm |
| Density | 0.960g/cm3 |
| Inside Diameter | Φ45.9mm |
| Outside Diameter | Φ49mm |
| Min. Wall Thickness | ≥1.5mm |
| Colour | transparent |
| Packing | 128pcs/bag or 140pcs/carton |
| Woven Bag Size | 720*400*230mm |
| Carton Size | 800*400*240mm |
| Sealant type | Silicone sealant,MU sealant,PU sealant |
| Accessories | |
| Plunger | D6 |

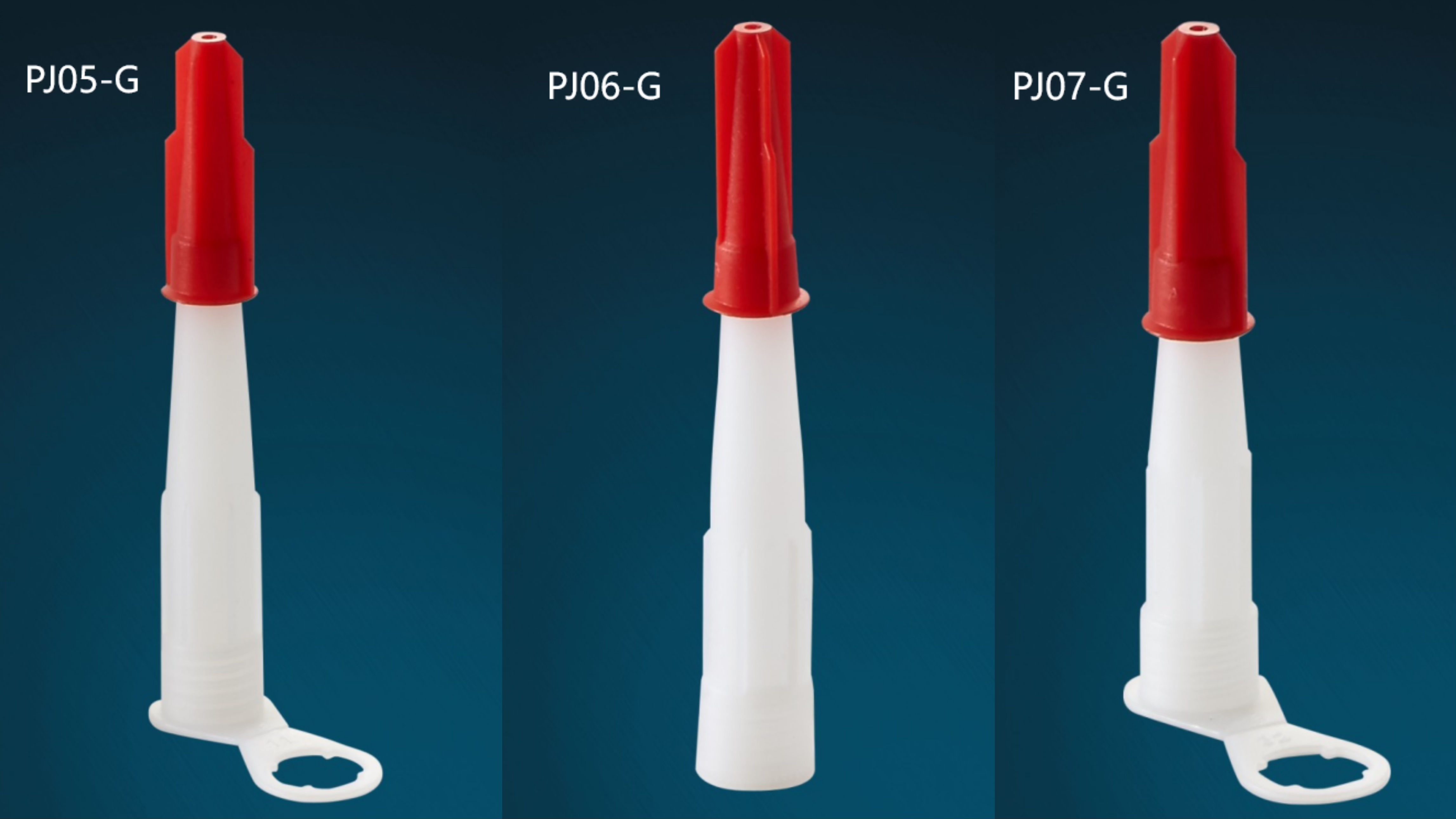

| Nozzle | PJ01,PJ02,PJ04,PJ05-G,PJ06-G,PJ07-G |
We specialized in manufacturing various packing materials including plastic cartridge,paperboard cartridge,aluminium cartridge,aluminium collapsible tube,sausage foil(the mentioned products can be printed and filled on motomatic machine),two component cartridge,static mixer and nozzle which are catered for solicone sealant,PU sealant,MS sealant and chloroprene rubber adhesive etc.
1. Can I get some samples?
Yes,we are honored to offer you samples. New clients are expected to pay for the courier cost, the samples are free for you, this charge will be deducted from the payment for formal order.
2.What's the MOQ ?
MOQ is 5000pcs .
3.Can your factory print or emboss my logo on the goods?
Yes, we can print or emboss the logo on the goods or their packing box, for patent protection purpose, a letter of attorney (letter of authorization) shall be provided for the logo.
4. How does your factory do regarding quality control?
Quality is priority !
Every worker keeps the QC from the very beginning to the very end:
1) All raw material we used are environmental-friendly;
2) Skillful workers care every detail in handing the stamping, printing, stitching,packing process;
3) Quality control department specially responsible for quality checking in each process.
If you have any questions,please contact us.
