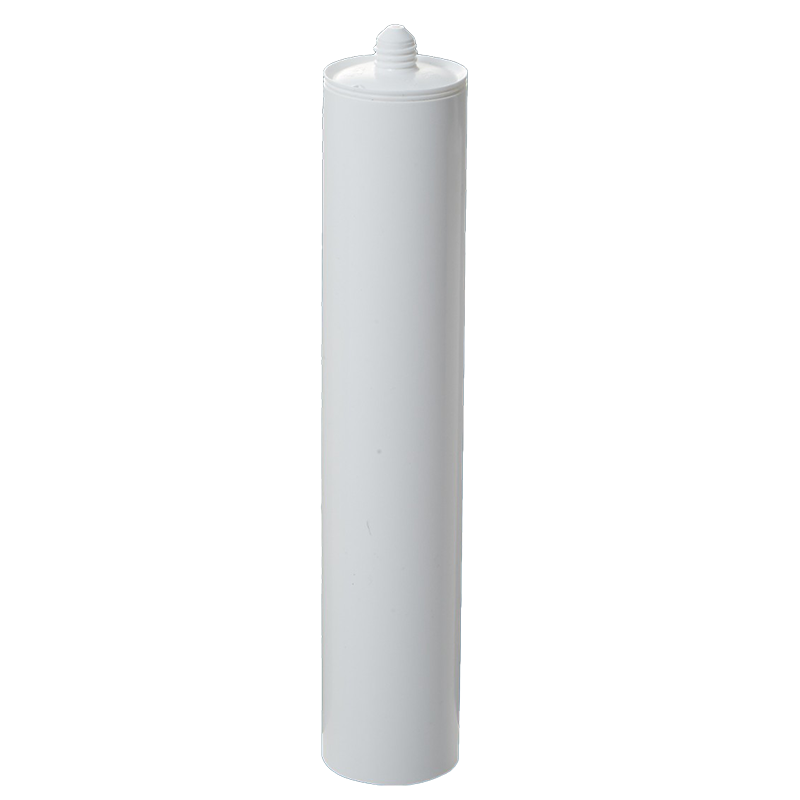

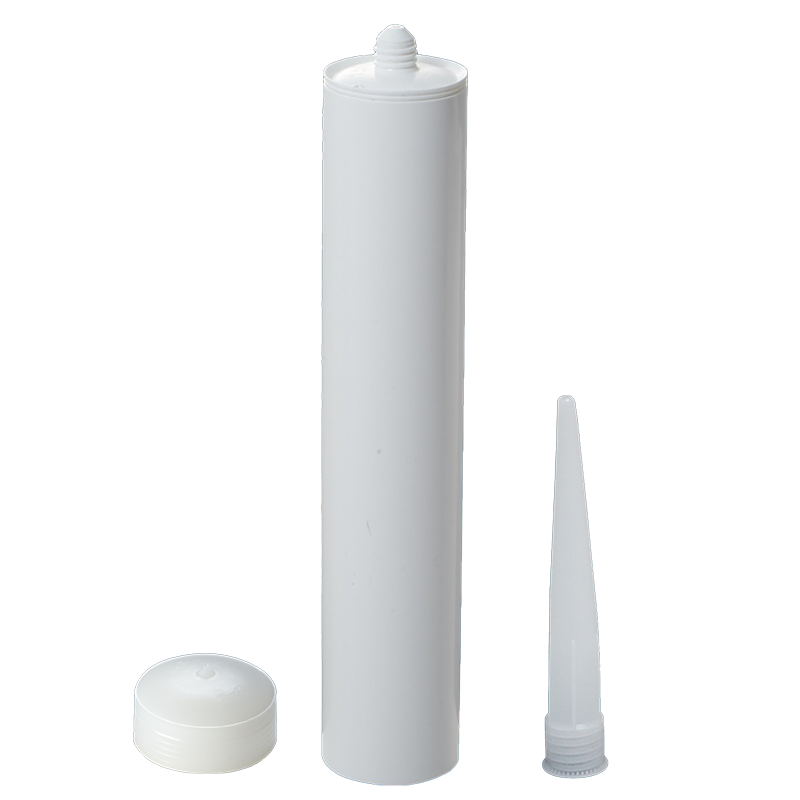

Engineered for superior performance and reliability, this plastic artridge is crafted from high-density polyethylene (HDPE) to ensure exceptional chemical resistance, preventing degradation and maintaining the integrity of even the most demanding formulations. Its robust design withstands high-pressure applications, reducing the risk of ruptures or leaks during dispensing, which enhances worksite safety and efficiency.The plastic cartridge is fully customizable, offering flexibility in branding and functional adaptations to meet specific project requirements. With a user-friendly design, it ensures smooth, consistent flow with minimal effort, reducing operator fatigue and improving application precision. The secure sealing mechanism prevents clogging and contamination, extending shelf life and reducing material waste. Ideal for professional contractors and industrial applications, this plastic cartridge delivers durability, versatility, and cost-effectiveness, making it the preferred choice for high-performance sealing and bonding tasks.
Superior Chemical Resistance – Withstands harsh adhesive components without degradation or leakage
High-Pressure Durability – Withstands extreme dispensing pressures
Secure Leak-Proof Seal – Provide an exceptional barrier against air and moisture ingress
Customizable Design – Offers branding and functional customization options
| Model No. | D16 |
| Net Weight | 68±2g |
| Volume | 350ml |
| Material | HDPE |
| Height (without threaded nipple) | 253±1mm |
| Inside Diameter | Φ45.9mm |
| Outside Diameter | Φ49.5mm |
| Min. Wall Thickness | ≥1.5mm |
| Packing | Woven Bag/Carton |
| Woven Bag Size | 720*400*230mm |
| Carton Size | 800*400*240mm |
| Sealant type | Silicone sealant,MU sealant,PU sealant |
| Accessories | |
| Plunger | d7 |

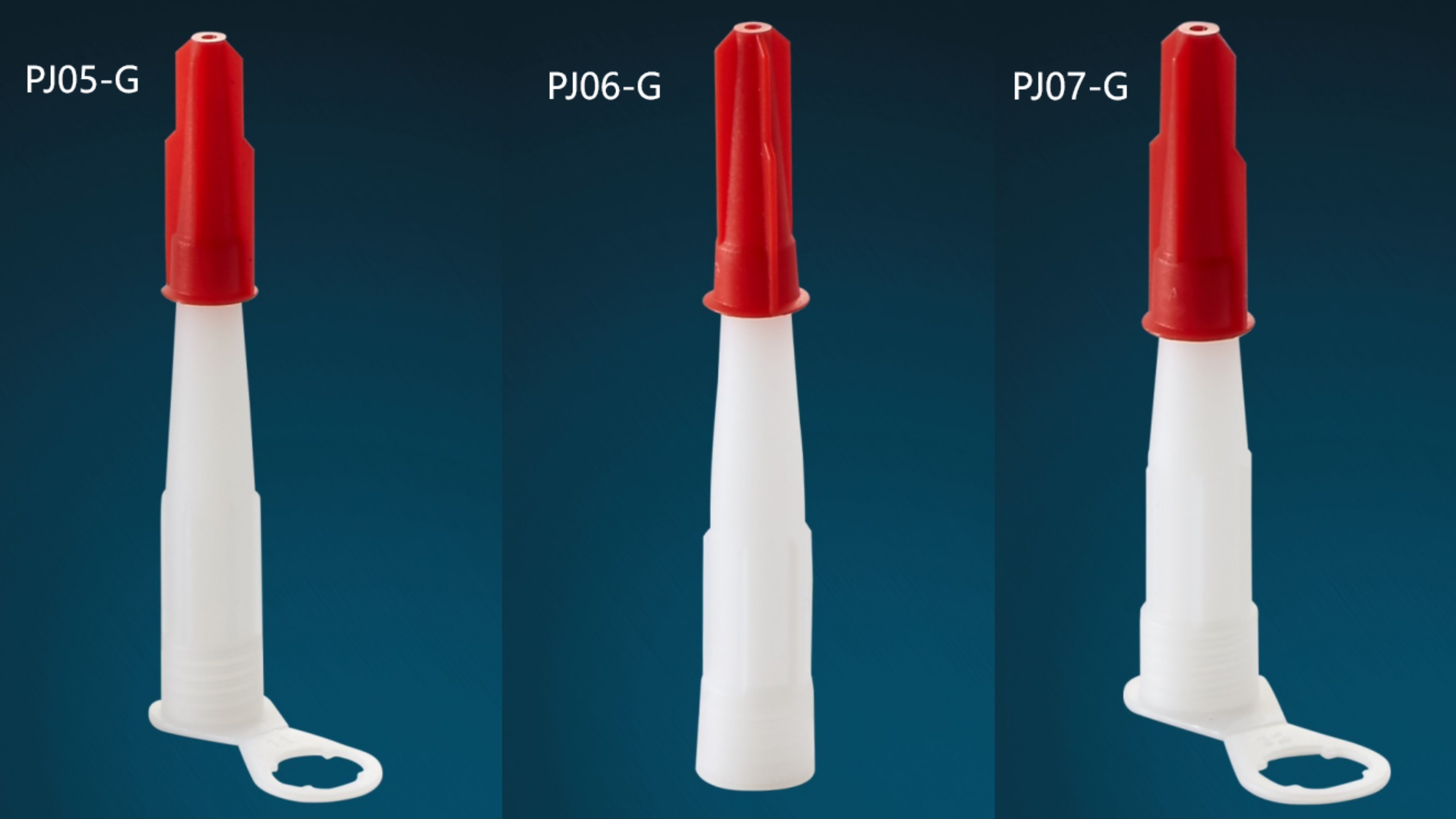

| Nozzle | PJ01,PJ02,PJ03,PJ04,PJ05-G,PJ06-G,PJ07-G |
1. What types of sealants and adhesives is this cartridge compatible with?
This plasti cartridge is specifically designed for industry-grade materials, including silicone sealant, MS sealant, and PU (Polyurethane) sealants and other adhesives.
2.What's the minimum order quantity (MOQ) and payment support?
MOQ is 5000pcs.
T/T, L/C is accepted.
3.What customization options are available?
We can print or emboss the logo on the goods or their packing box, for patent protection purpose, a letter of attorney (letter of authorization) shall be provided for the logo.
We usually produce goods based on customer's samples or based on customers' picture, logo, sizes etc detail information design for customers.
4.What is the cartridge's volume capacity?
The plastic cartridge has a standard 350ml (11.8 oz) capacity, which is the industry-standard size for professional construction and adhesive applications.
5.Is this product suitable for high-temperature environments?
The HDPE material can withstand typical job site temperatures. However, always store sealants and cartridges in a cool, dry place away from direct sunlight for optimal performance.
If you have any other questions, please CONTACT US .
